Oil-immersed transformer

110KV three-phase oil-immersed power transformers

Overview

The company 110 kv transformer, the use of the French areva analysis software and the company special computer and validation procedures, for transformer core, coil, machine body, lead, tank etc all-round optimization design and verification, to ensure that product performance. Superior technology and equipment, the careful selection of materials, high efficient production, making the transformer has small volume, light weight, low loss, low partial discharge, low noise characteristics, the product quality is superior, energy conservation and environmental protection, easy installation and maintenance, reliable operation and effectively reduce the operation cost of the products.

The company SSZ11-40000/110 through the country transformer quality supervision and inspection center short circuit capacity and all routine type tests. This product is stable, reliable, economic and environmental characteristics, suitable for power plants, substations, large industrial and mining petrochemical enterprise, etc.

Execution standard

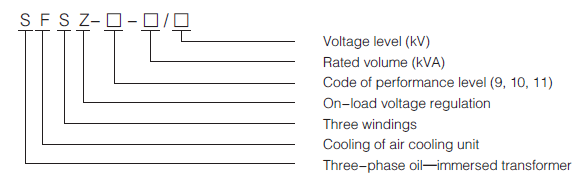

Model
Performance
Parameters
Appearance

- GB1094.1~2-1996 Power transformer
- GB1094.3,5-2003 Power transformer
- Technical parameters and requirements of GB/T6451-2008 three-phase oilimmersed power transformer
Performance characteristics
- Low loss: Its no-load loss is about 40% less than that specified in national standard GB6451-1999. Compared to that specified in current national standard GB6451-1999, its on-load loss decreases by 15%.
- Low noise: The noise level is below 60dB, 20dB less than national standard. According to special requirements of users, the product can be specially designed and manufactured (below 55dB) to meet the demands for power supply for residents of our urban grid;
- Low partial discharge: The entire line procedures of 110kV products are manufactured in dust-free environment. For the metal parts and insulation parts in the body, their corners shall be rounded. The partial discharge capacity is within 100pc.
- Strong capacity against short circuit: SZ10-40000/110 transformer designed independently by our company has passed short-circuit withstanding test made by China National Transformer Quality Supervision Testing Center.
- Beautiful appearance: folded plate and corrugated structure of oil tank, ball blasting for derusting, powder electrical painting, wide-panel type radiator, never fading.
- No leakage: all seal end limiting, double sealing of upper and lower tanks, and all sealing elements being imported. We make the formal commitment that there is not leakage.

Technical parameters of SF11/110 series of three-phase double winding non-excitation voltage regulation type power transformer
Rated volume (kVA)	Rated voltage (kV)		Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Excit. Curr. (%)	Impedance (%)	Weight (MT)			Outline dime. (mm)
Rated volume (kVA)	High voltage (kV)	Low voltage (kV)	Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Excit. Curr. (%)	Impedance (%)	Oil weight	Total weight	Transport weight	H	L	B	HL	T
6300	110±2×2.5% 121±2×2.5%	6.3 6.8 10.5 11 20	YNd11	6.5	34	0.3	10.5	6.6	22.5	19.8	4300	5200	3700	5600	1475
8000				7.5	42			7.1	25.2	22.1	4420	5420	3950	5720
10000				9	50			7.6	27.4	24	4550	5730	4280	5800
12500				10.5	59			8.3	31	28.1	4670	5790	4310	6000
16000				13	73			9.5	35.5	30.5	4810	6120	4340	6300	2040
20000				16	88	0.25		10.6	39.7	35.5	4820	6200	4380	6400
25000				18	104			11	44.8	37.6	4990	6330	4420	6500
31500				20	123			12.6	50	43.2	5080	6380	4510	7000
40000				24	148			14.5	59.5	49	5280	6500	4840	7300
50000				28	180	0.2		16.2	67.5	57	5320	6660	5080	7500
63000				35	220			16.8	76	65	5610	6760	5100	8000
75000		13.8 18 20		40	260			18.8	85	72	5750	6820	5110	8100
90000				45	285	0.15		20.2	92	77.5	5850	6900	5120	8300
120000				65	365			23.8	115	99.8	6070	7230	5220	8600
150000				75	420
180000				85	490

Technical parameters of S11/110 series of three-phase double winding non-excitation voltage regulation type power transformer
Rated volume (kVA)	Rated voltage (kV)		Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Excit. Curr. (%)	Impedance (%)	Weight (MT)			Outline dime. (mm)
Rated volume (kVA)	High voltage (kV)	Low voltage (kV)	Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Excit. Curr. (%)	Impedance (%)	Oil weight	Total weight	Transport weight	H	L	B	HL	T
6300	110±2×2.5% 121±2×2.5%	6.3 6.8 10.5 11 20	YNd11	6.5	34	0.3	10.5	7.5	23	18.5	4300	5320	4650	5300	1475
8000				7.5	42			8.1	25.8	21.4	4450	5550	4740	5500
10000				9	50			9.3	30.3	24	4580	5730	4840	5800
12500				10.5	59			10	34.3	28.1	4670	5790	4830	6000
16000				13	73			11	38.4	30.5	4810	6120	4880	6300	2040
20000				16	88	0.25		12.3	43.6	35.5	4820	6200	5100	6400
25000				18	104			12.8	48.4	37.6	4990	6330	5320	6800
31500				20	123			14.4	55	43.2	5080	6330	5380	7000
40000				24	148			16.2	64	49	5290	6500	5410	7300
50000				28	180	0.2		18	73.2	57	5320	6650	5500	7500
63000				35	220			19.3	85	64.8	5610	6750	5520	8000
75000		13.8 18 20		40	260			22.5	95	70.2	5750	6850	5550	8200
90000				45	285	0.15		24.3	105.5	77.5	5850	6900	5570	8300
120000				65	365
150000				75	420
180000				85	490

Technical parameters of SFZ11/110 series of three-phase double winding loaded voltage regulation type power transformer
Rated volume (kVA)	Rated voltage (kV)		Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Excit. Curr. (%)	Impedance (%)	Weight (MT)			Outline dime. (mm)
Rated volume (kVA)	High voltage (kV)	Low voltage (kV)	Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Excit. Curr. (%)	Impedance (%)	Oil weight	Total weight	Transport weight	H	L	B	HL	T
6300	110± 8×1.25%	6.3 6.6 10.5 11 20	YNd11	7	34	0.3	10.5	6.6	22.5	19.8	4300	5200	3700	5600	1475
8000				9	42			7.1	25.2	22.1	4420	5420	3950	5720
10000				10	50			7.6	28	24.6	4560	5930	4280	5800
12500				12	59			8.3	31.8	28.9	4670	5990	4310	6000
16000				14	73			9.7	36.4	31.3	4810	6320	4340	6300	2040
20000				18	88	0.25		10.8	40.6	36.4	4820	6400	4380	6400
25000				20	104			11.3	45.8	38.6	4990	6530	4420	6800
31500				23	125			12.8	51	44.2	4080	6590	4510	7000
40000				25	146			14.8	60.7	50.2	5280	6700	4810	7300
50000				30	180	0.2		16.2	69	58.5	5320	6860	5080	7500
63000				38	220	0.2		17.5	77.6	66.5	5610	6960	5100	8000

Technical parameters of SFSZ11/110 series of three-phase three winding loaded voltage regulation type power transformer
Rated volume (kVA)	Rated voltage (kV)			Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Excit. Curr. (%)	Impedance (%)	Weight (MT)			Outline dime. (mm)
Rated volume (kVA)	High voltage (kV)	Medium voltage (kV)	Low voltage (kV)	Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Excit. Curr. (%)	Impedance (%)	Oil weight	Total weight	Transport weight	H	L	B	HL	T
6300	110± 8×1.25%	35 37 38.5	6.3 6.6 10.5 11 20	YNyn0d11	9	44	0.35	HV-MV 10.5 HV-LV 17.5~18.5 MV-LV 6.5	8.9	30.3	25.8	4370	6550	4180	5800	2040
8000					10	53			9.6	32.2	27.9	4430	6580	4250	5900
10000					12	62			10.1	34	29.6	4530	6780	4310	6000
12500					13	74			11.5	39.4	34.2	4670	6890	4440	6400
16000					16	90			12.7	44.7	39.8	4750	6990	4720	6800
20000					21	105	0.3		12.9	47.3	41.6	4810	7450	4760	7000
25000					23	123			13.5	53.6	46.5	4960	7170	4760	7200
31500					27	148			14.7	61.3	53.2	5040	7330	4890	7400
40000					32	176			17.8	74.8	64.8	5380	7430	5130	7800
50000					36	220	0.25		21.2	88.6	77	5440	7750	5360	8000
63000					43	250	0.25		22.3	98.8	86	5720	7810	5620	8100

Technical parameters of SSZ11/110 series of three-phase three winding loaded voltage regulation type power transformer
Rated volume (kVA)	Rated voltage (kV)			Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Excit. Curr. (%)	Impedance (%)	Weight (MT)			Outline dime. (mm)
Rated volume (kVA)	High voltage (kV)	Medium voltage (kV)	Low voltage (kV)	Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Excit. Curr. (%)	Impedance (%)	Oil weight	Total weight	Transport weight	H	L	B	HL	T
6300	110± 8×1.25%	35 37 38.5	6.3 6.6 10.5 11 20	YNyn0d11	9	44	0.35	HV-MV 10.5 HV-LV 17.5~18.5 MV-LV 6.5	8.9	30.7	23.1	4370	6750	4710	5800	2040
8000					10	53			10.3	34.5	26.6	4420	6780	4760	5900
10000					12	62			11.4	37.4	29.6	4530	6780	4850	6000
12500					13	74			12.8	44	34.2	4670	6890	4880	6400
16000					16	90			13.9	50.6	39.8	4750	6990	4970	6800
20000					21	105	0.3		14.5	53.3	41.6	4800	7150	5130	7000
25000					23	123			15.9	59.8	46.5	4960	7170	5300	7200
31500					27	148			17.7	69	53.2	5040	7320	5390	7400
40000					32	176			21.1	83	64.8	5380	7430	5580	7800
50000					36	220	0.25		24.2	97.6	77	5440	7750	5620	8000
63000					43	250	0.25		25.5	108.6	86	5720	7810	5740	8100
